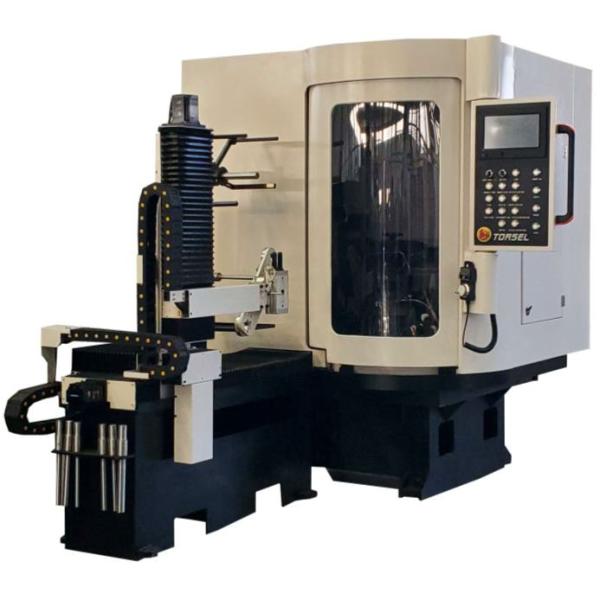

TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine

Brand Name : TORSEL

Model Number : ASZ400/ASZ500

Certification : CE,ISO 9001

Place of Origin : MADE IN CHINA

MOQ : 1

Price : 25000~38000

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000UNITS/A

Delivery Time : 25-35DAYS

Packaging Details : Water Proof + Wood Carton

FUNCTION : DUAL SIDE GRINDING

MAX DIA. : 120-505MM

THICKNESS : 0.5-10MM

HOOK ANGLE : -5°~30°

CENTRIPETAL : -5°~5°

CIRCUMFERENTIAL RANGE : 0°~5°

TIPS LENGTH RANGE : 2~15MM

PITCH : 2~100MM

Grinding Wheel Speed : 4~20S/TIP

WHEEL GRINDING SPEED : 3500`3800RPM

WHEEL SIZE : 80*120*32*7MM

PRECISION : < 0.02MM

POWER : 6KW

DIMENSION : 2850*1520*1920MM (L*W*H)

WEIGHT : 2500KG

FEATURES : 7*24 HOURS WORKING

FEATURES-2 : LOADER PICK & PLACE SAWS INSTEAD OF MANUAL

FEATURES-3 : SAVE LABOR COST

FEATURES-4 : INCREASE EFFICIENCY & PRODUCTIVITY

Contact Now

ASZ400/ASZ500 Carbide Tips Circular Saws Sharpening Machine with Loader

Product Description

ASZ400/ASZ500 Sharpening Machine with Loader is ideally equipped for sharpening carbide-tipped circular saw blades, in timber, press board, PVC and aluminum materials cutting saw blade Sharpening in dual side angle with Robot (PRECISION).
Increase higher productivity & precision grinding machine for carbide tools.

Robot design is mainly solve labor cost problem, loader pick and put saws instead of manual.



• Saw blade Diameter: < 505mm
• Function: dual Side sharpening
• Precision: <0.02mm
• Model: ASZ 400 / ASZ 500
• Pitch:<100mm
• Cooperation Company
TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine

TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine



TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine

TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine


TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine




CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine


3-D Graphics Grinding Machine

TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine





Technical Premeter

Model ASZ500 ASZ400
Saw Diameter 120~505mm 120~405mm
Plate Thickness 0.5~10mm 0.5~10mm
Centripetal -5°~5° -5°~5°
Circumferential 0°~5° 0°~5°
Bore Diameter 12~120mm 12~120mm
Pitch 2~100mm 2~100mm
Tip Length 2`15mm 2`15mm
Wheel Power 0.75KW 0.75KW
Wheel Diameter 80~120mm 80~120mm
Wheel Bore 32mm 32mm
Wheel Linear Velocity 30m/s 30m/s
Grinding Speed 2mm~10mm/s 2mm~10mm/s
Processing Efficiency 4~20 tip/min 4~20 tip/min
Grinding Accuracy <0.01mm <0.01mm
Coolant Tank 70 L 70 L
Input Voltage 380V 50Hz(OR 220V60Hz) 380V 50Hz(OR 220V60Hz)
Power Approx 6KW Approx 6KW
Dimension 2850mm*1520mm*1920mm 2650mm*1520mm*1920mm
Weight 2500kg 2500kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine
TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine
TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

TORSEL High Accuracy Cnc Function Saw Blade Sharpening Machine
